Amtrak Passenger Car Diagrams 1976 1977

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

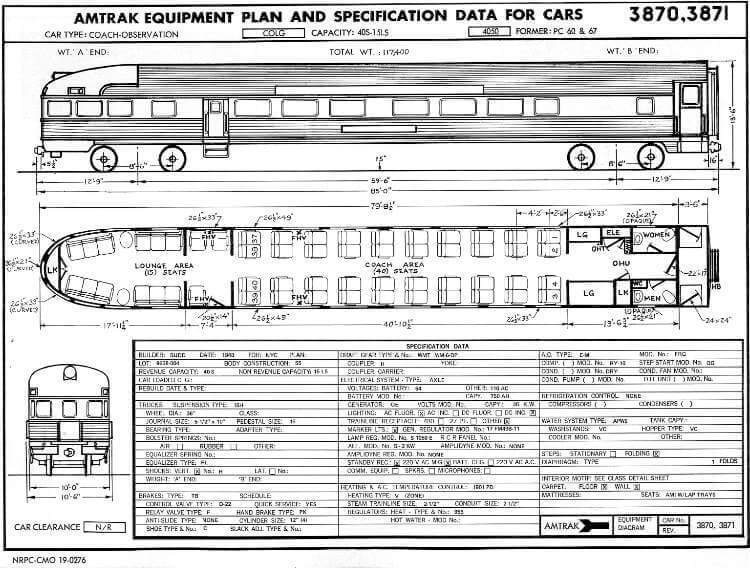

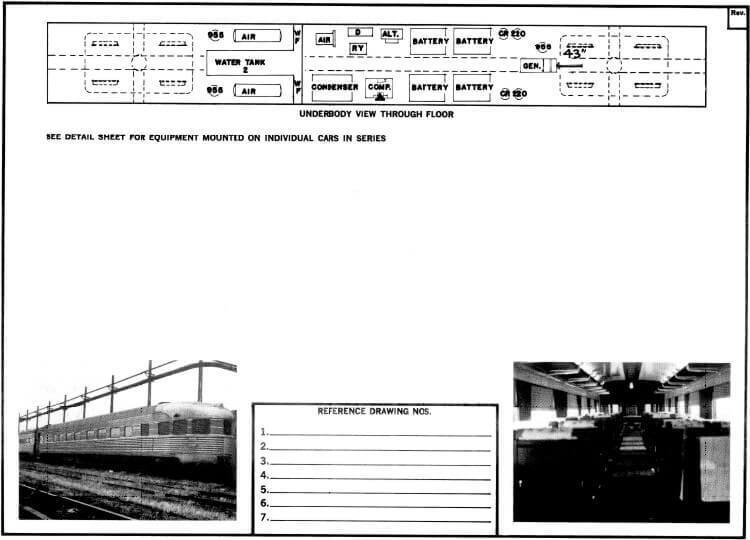

The ultimate reference to early Amtrak passenger cars and predecessor cars. Each sheet details one car with the side view, floor plan and data on one side and actual pictures of the car and the underbody diagram on the backside of most sheets. With 700 sheets, that is about 350 passenger car diagrams.

This is a scan of an original Amtrak passenger car diagram and data book, “Amtrak Equipment Plan and Data Manual (NRPC CMO-117), Office of the Assistant Vice President – Chief Mechanical Officer”. The pictures on the reverse of most pages have reproduced quite well, but they are reproduced from original small b/w images and so some are dark losing some detail. 1976 issue, updated to 1977. Pages are 8.5 x 11 inches.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.

About your lifetime download backup guarantee

► Our data is stored in the most reliable data cloud on the planet, the Amazon Cloud. The same service Netflix uses.
► We are serious about storing and serving data.
► If you lose your disc, change computers, whatever the need, just send us an email.
