Louisville & Nashville Locomotive Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

From the Office of the Assistant Vice President for Mechanical – here is the L&N “Locomotive Data Book” updated to 1979. Included is an index with information on each locomotive by road number. Hundreds of units are in the index with information ranging from build dates to equipment included to former ownership and retirement dates. The 30 page index has information on all the above units and many more broken out by road number. The index includes information by road number on hundreds of L&N and predecessor units.

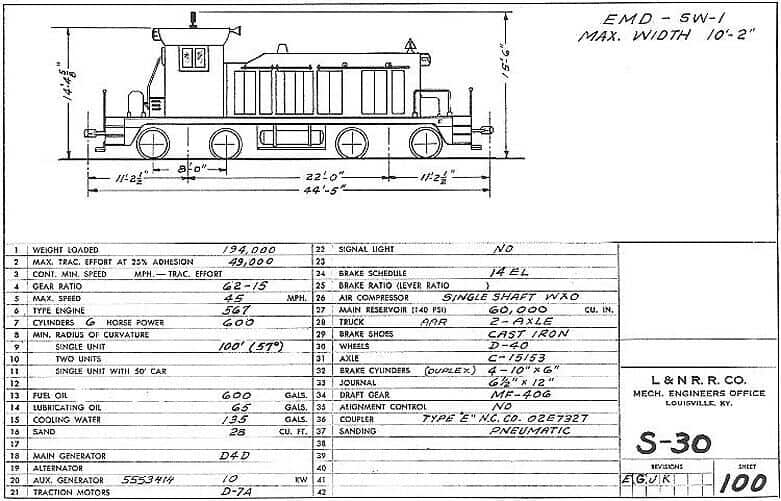

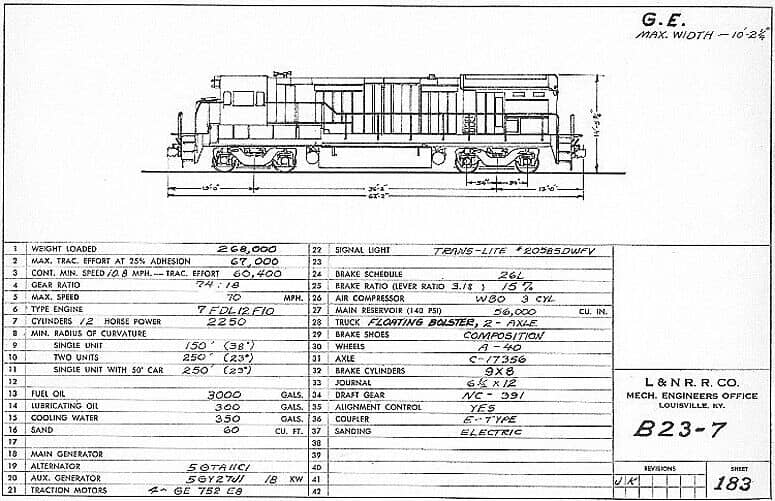

This manual contains diagrams for every diesel on the L&N in 1979. Build dates range from 1940 to 1978:EMD SW-1, SW-7, SW-9, SW-1200, SW-1500, NW-2, MP-15, MP-15AC, GP-7, GP-7N, GP-9, GP-18, GP-30, GP-35, GP-38, GP-38-2, GP-40, SD-35, SD-38-2, SD-40, SD-40-2, SDP-35, ALCo units: S-2M, RS-11, RS-20, S-3M, C-430, C-418, C-420, C-628, C-630, S-80M (ALCo-EMD), GE units: U-23B, U-25B, U-25C U-28C, U-30B, U-30C, B-23-7.

This is a scan of an original L&N document. Updated 1979. 129 pages. 8.5×11.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.

About your lifetime download backup guarantee

► Our data is stored in the most reliable data cloud on the planet, the Amazon Cloud. The same service Netflix uses.
► We are serious about storing and serving data.
► If you lose your disc, change computers, whatever the need, just send us an email.
