P&LE PMcK&Y Steam Locomotive Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

Diagrams of 19 different steam locomotives, and all the information that goes with the diagrams, for the Pittsburgh and Lake Erie Railroad and the Pittsburgh, McKeesport & Youghiogheny Railroad – both a part of the giant New York Central System. This diagram books includes information on these locomotives:

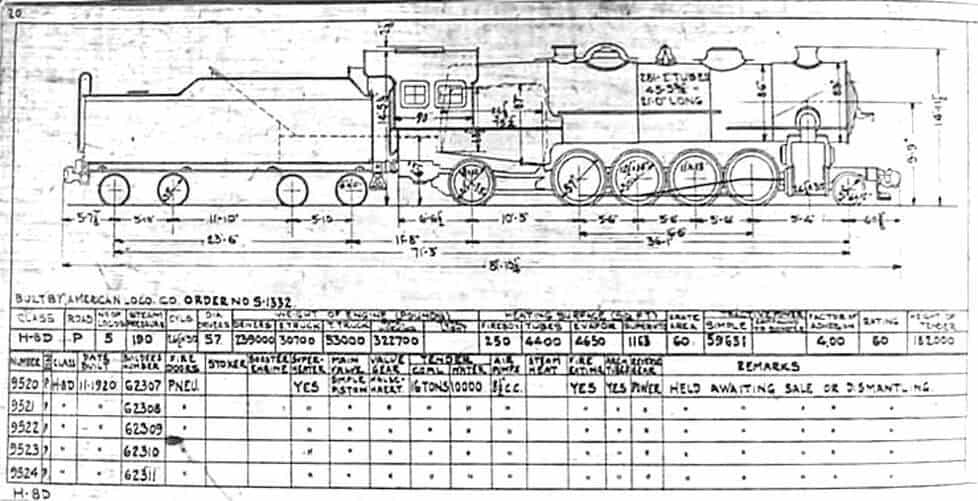

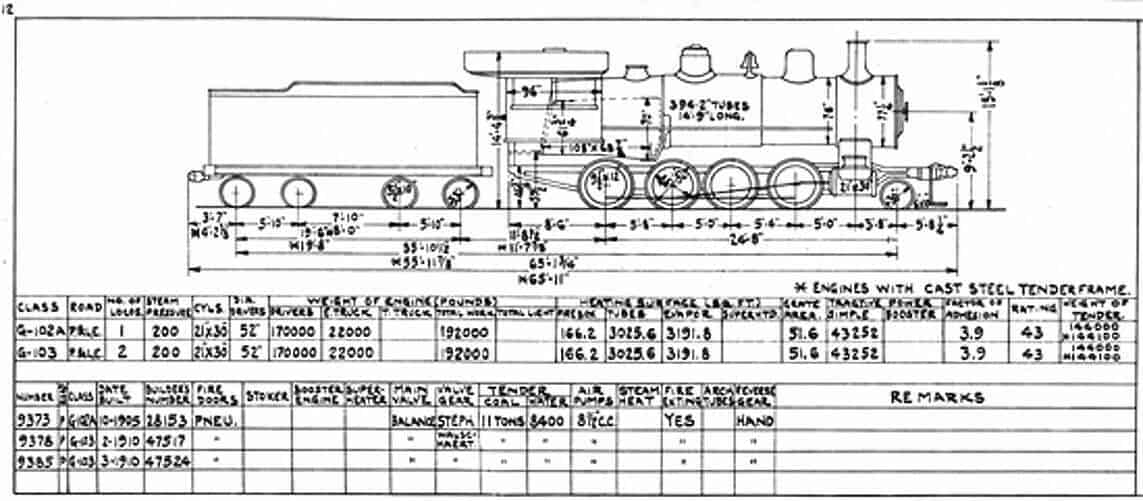

P&LE Class B-104A (side tanks), 0-6-0, B-104 0-6-0 (with various tenders), F-103A 4-6-0, F-105A 4-6-0, G-102A 2-8-0, G-103 2-8-0, G-104 2-8-0, G-102D 2-8-0, H-8A 2-8-2, H-8C 2-8-2, H-8B 2-8-2, H-8D 2-8-2, H-9(A,B,C,D)2-8-2, H-10A 2-8-2, H-10B 2-8-2, I-100A 4-4-2, K-4A 4-6-2, K-4B 4-6-2, K-6A 4-6-2, K-6B 4-6-2, NU-1B 0-8-8-0, U-3J 0-8-0, U-3K 0-8-0.

Builders include P&LE, ALCo, Baldwin and Lima. Notes for each diagram include road numbers for each locomotive in that class plus build dates, builder number and information unique to each locomotive.

This is a scan of an original P&LE and PMcK&Y Steam Locomotive Diagram Book. Updated to 1938. 43 pages. 3 index pages. 8.5 x 11.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.
