Southern Pacific Steam Locomotive Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

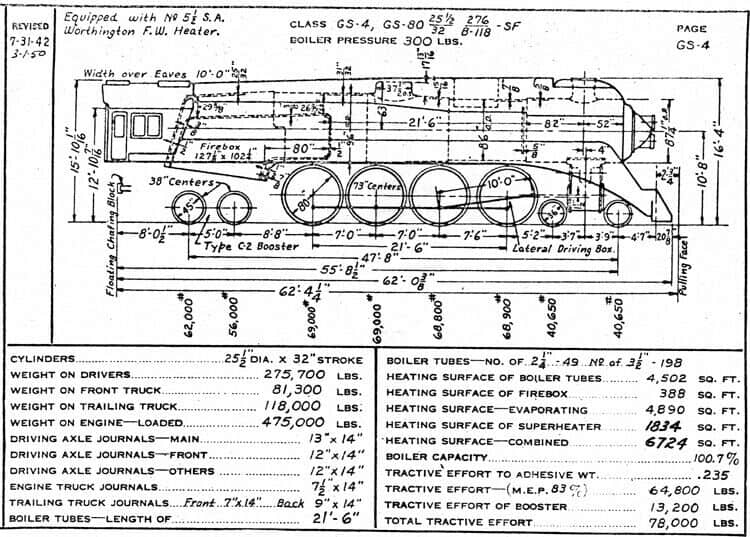

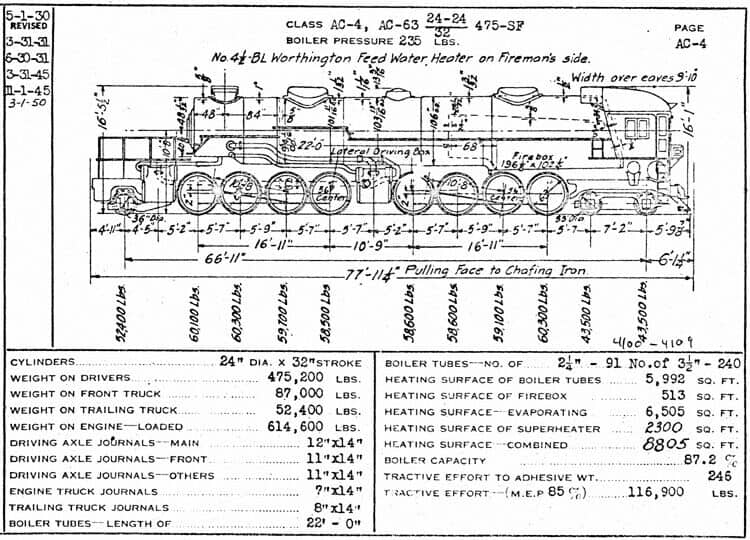

Steam Locomotives of the Southern Pacific: from switchers to the streamlined GS class to mighty Cab Forwards like the 4-8-8-2 AC-12 class. 224 total pages with 160 diagrams and 64 pages of indexes. This diagram book is all steam locomotives. No diesels. No tenders (though there is an 11 page tender index). Diagrams date from 1930 to 1950 with revision dates covering everything in between. The final revision date in both the index and on many of the diagrams is 1951. None of the diagrams are marked with build dates or locomotive manufacturers. All have detailed measurements and engineering data for each steam locomotive. Some are marked for SP subsidiary the San Diego and Arizona Eastern. The indexes note locomotive numbers for each class and sub class. Other notes include locomotives on lease. There is a separate index for SD&AE locomotives and another index for SP tenders, although no tender diagrams are included in this diagram book.

Steam Locomotive classes covered in this diagram book:* Class A (4-4-2), * Class AC (2-8-8-2), * Class AC (4-8-8-2),* Class AC (2-8-8-4), * Class B (2-8-4), * Class C (2-8-0),* Class E (4-4-0), * Class F (2-10-2), * Class GS (4-8-4),* Class M (2-6-0), * Class MM (2-6-6-2) * Class Mk (2-8-2),* Class Mt (4-8-2), * Class P (4-6-2), * Class Pr (4-6-2), * Class S (0-6-0),* Class SE (4-6-0), * Class SP (4-10-2), * Class Tw (4-8-0).

This is a scan of an original Southern Pacific Lines Locomotive Diagram Book. 224 pages. July 1, 1951.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.
