CB&Q Freight Car Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

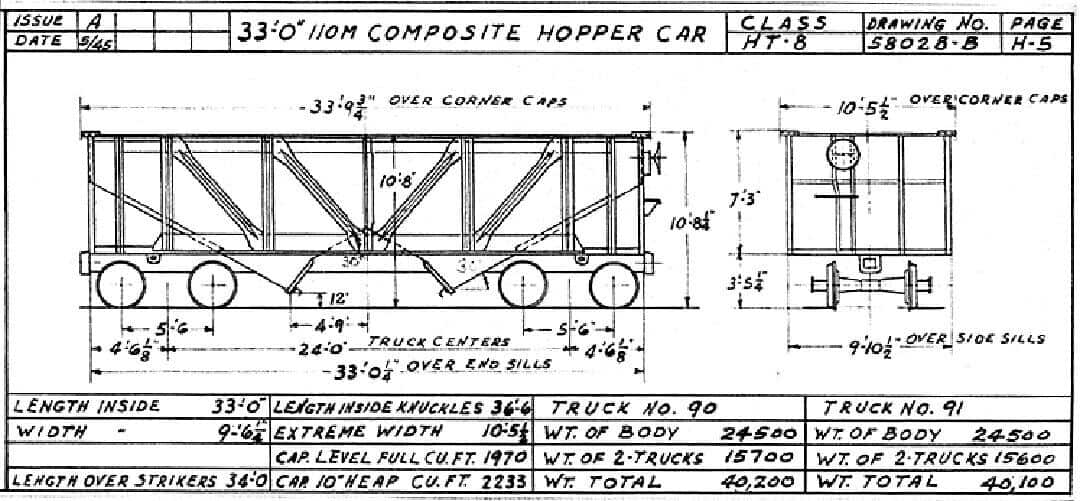

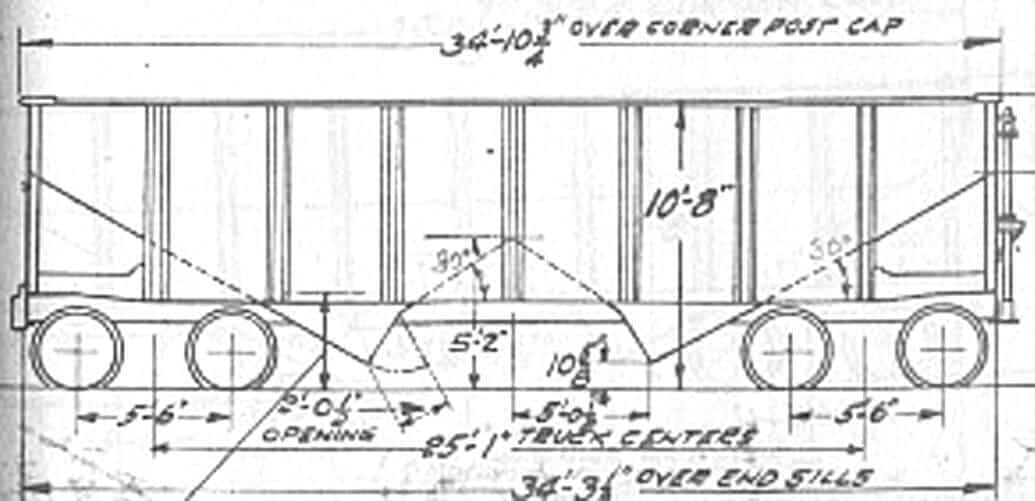

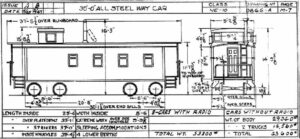

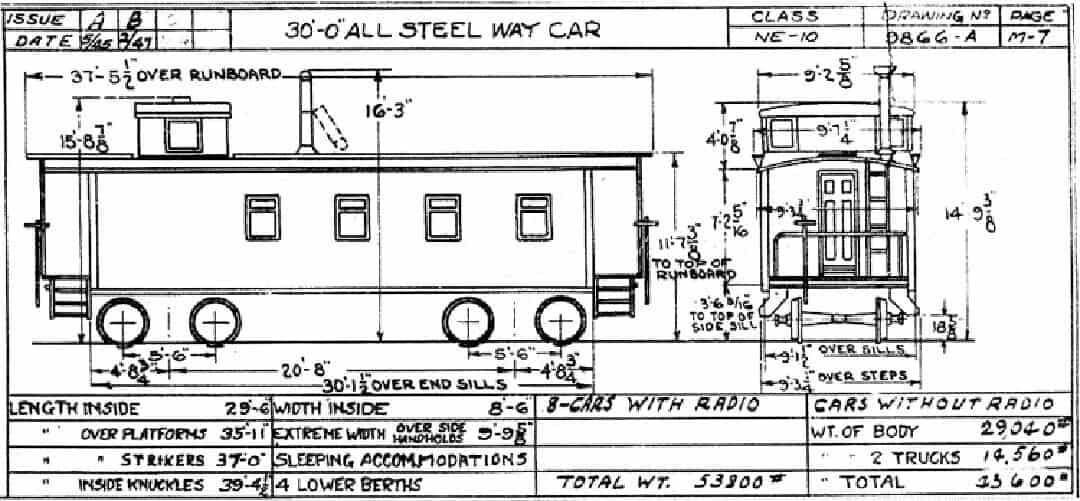

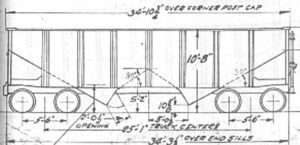

Detailed Freight Car Diagrams from the Chicago, Burlington and Quincy – the Burlington Route. This book is updated to 1967 and includes diagrams for freight cars: box cars, insulated box cars, stock cars, ballast cars, mill gondolas, covered hoppers, open hoppers, Airslides, flat cars, bulk flats, dump cars, tank cars, refrigerator cars and cabooses. Each car type is further broken down by series with many diagrams for each series. Diagrams in this book are marked as updated at various times from 1945 through 1967. The 148 diagrams are complimented by 70 pages of index that detail car series and changes by car number in each series. The index is extremely detailed showing equipment assigned to cars and more.

This is a scan of an original CB&Q diagram book. A few of the older blueprint diagrams were quite washed out. The original diagram size is 8.5 inches by 3.75 inches. This scan is blown up by 25% for increased readability.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.

About your lifetime download backup guarantee

► Our data is stored in the most reliable data cloud on the planet, the Amazon Cloud. The same service Netflix uses.
► We are serious about storing and serving data.
► If you lose your disc, change computers, whatever the need, just send us an email.
