Chicago North Western System Track Charts

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

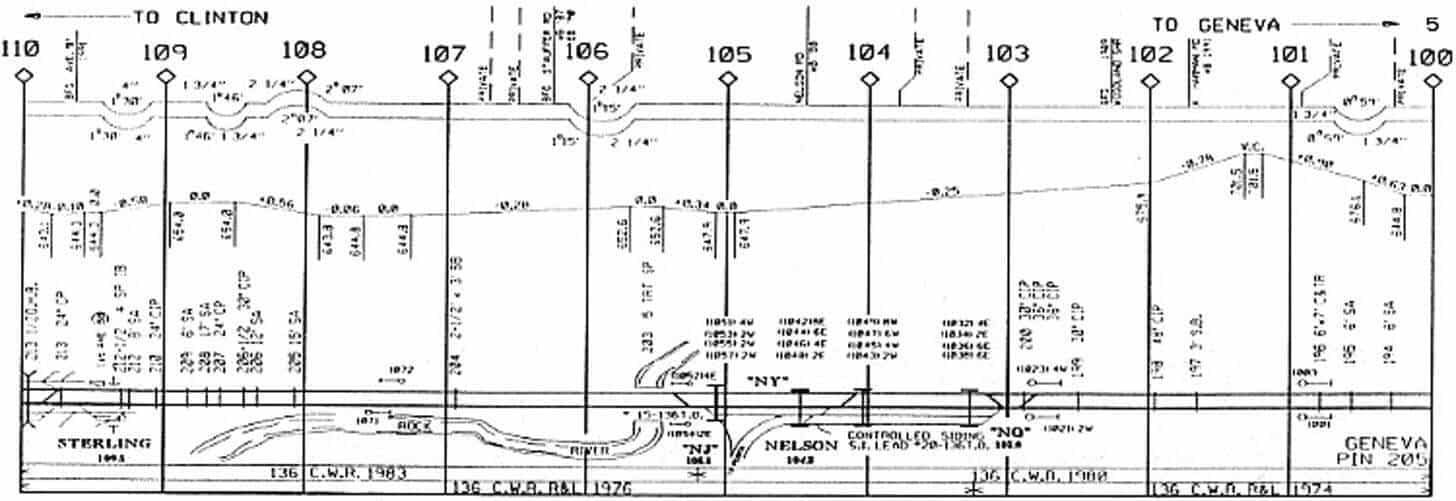

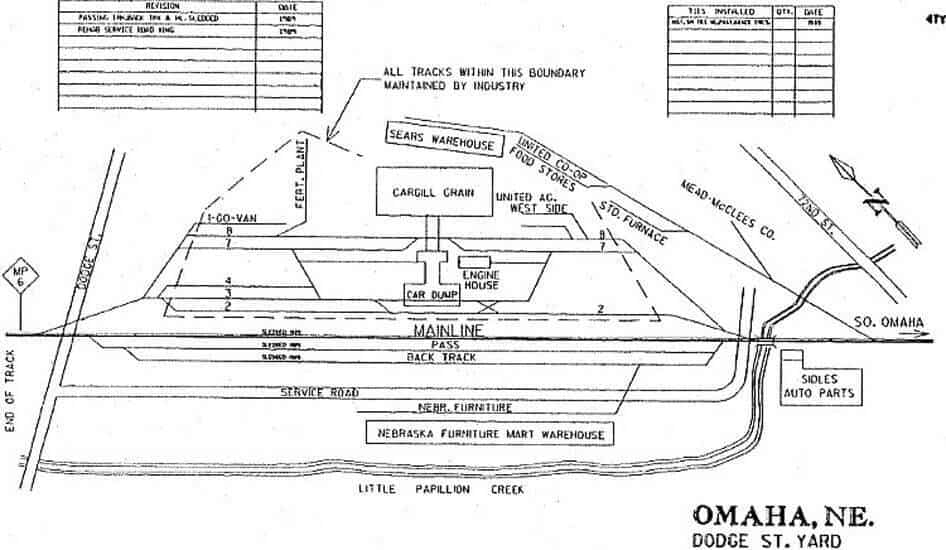

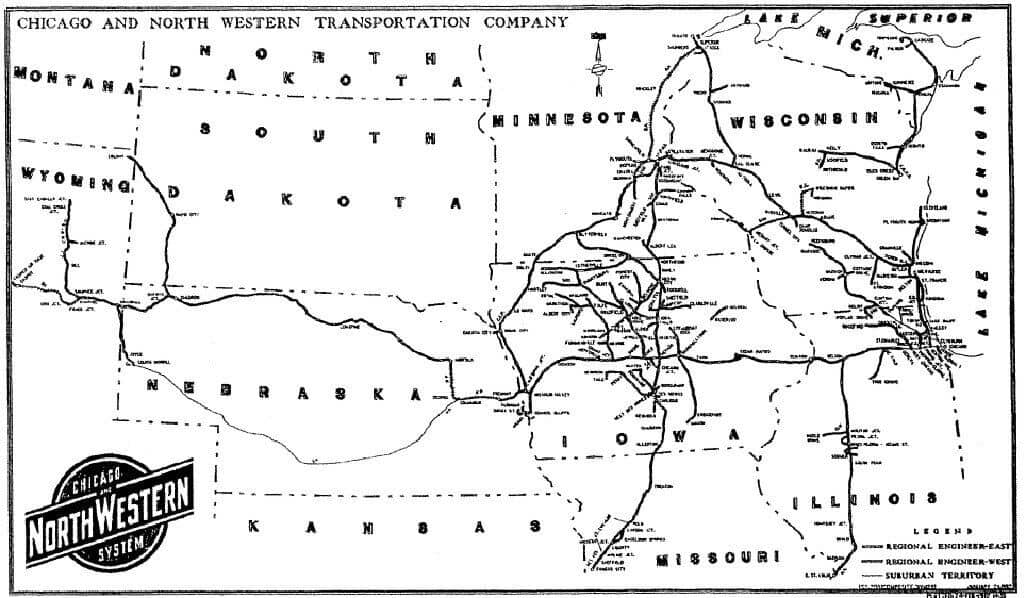

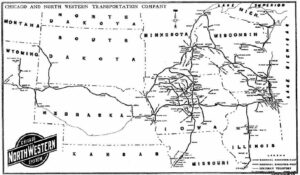

Here is the Chicago North Western in 1992. The CNW Regional Engineer East Territory covers CNW lines in Illinois, Wisconsin and Minnesota and then Nebraska and into Wyoming. The Regional Engineer West Territory covers Iowa, Missouri and southern Minnesota. The Suburban Territory covers the Chicago Commuter district in Illinois and Wisconsin. All three track charts are from 1992 and together they cover the entire CNW as it existed at that time. This is a scan of three original Chicago North Western track charts. Track charts are 8.5 x 11, three-hole punched and placed in a pressboard report cover. The scan above is an example of a track chart page, below is an example of one of the many yard and area maps. Included with each track chart is a key, an index and a list of stations. A track chart shows every mile of track including curvature, signals, tunnels, grade (profile) and more.

About your lifetime download backup guarantee

► Our data is stored in the most reliable data cloud on the planet, the Amazon Cloud. The same service Netflix uses.
► We are serious about storing and serving data.
► If you lose your disc, change computers, whatever the need, just send us an email.
