Santa Fe Diesel Engine Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

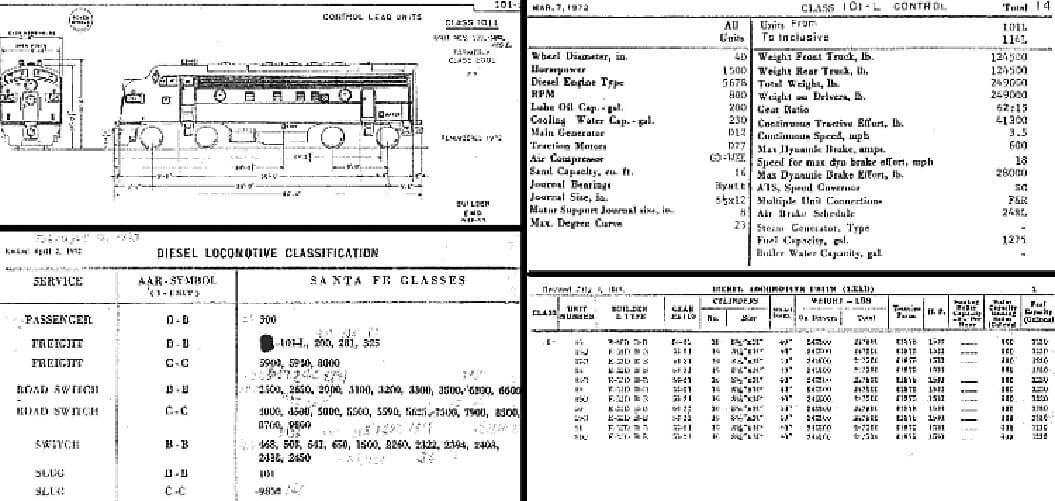

With build dates of 1939 to 1972 this diagram book covers the early days of dieselization on the ATSF. There are two parts to this book, the first is a list of all diesel locomotives on the Santa Fe as of July, 1968. This is a comprehensive 60 page listing with unit numbers, build date and much more on each locomotive. Included in this part of the book is a one page summary of units on the property as of August 1973 (An impressive 1,842 units).

The second portion of the book, some 50 pages, is a series of diagrams and data for ATSF locomotives. Diesels covered in the data section and diesels with a diagram are noted below. Also included with this book is a chart showing ATSF Class numbers and the related Builder Designations, making it easier to find certain locomotive types. Various diagrams are marked Topeka and a couple of diagrams are marked “Built at” Topeka or San Bernardino Shops.

This book contains data listings for:
EMD F3, F7, E8, FP45, F45, EMD GP7, GP9, GP20, GP30, GP35, EMD SD24, SD40, SD45, GE U25B, U28CG, U30CG, GE 44-tonner, ALCo PA1, PB1, RSD15, DL600B, RS2, S1, HH1000Fairbanks Morse H10–44, H12-44, H16-44, Baldwin VO1000, DS4-4-1000Diagrams/Data in this book include:

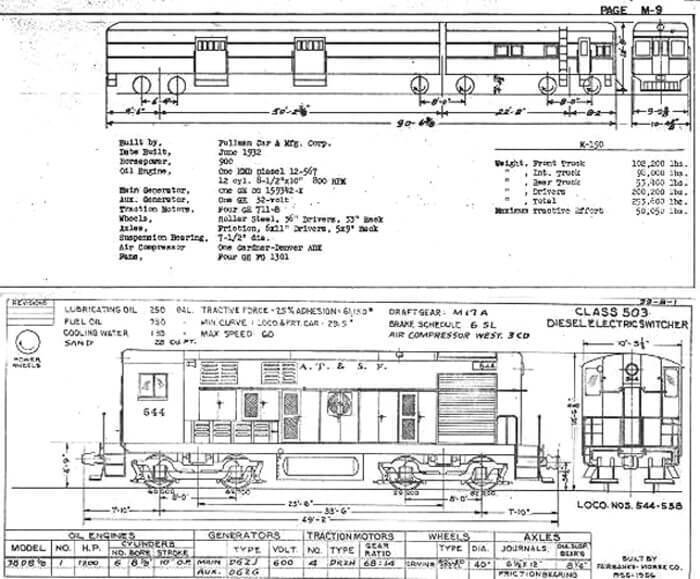

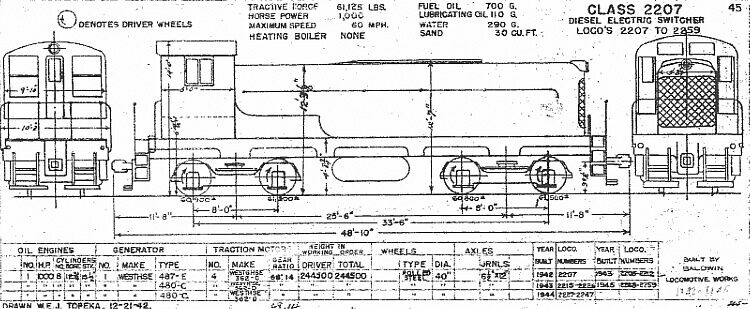

EMD F3 (A and B units), F7 (A and B units), GE 44-ton, FM H10-44, H12-44, BLW DS4-4-750, DS4-4-1000, BLW VO1000, ,ALCo HH1000, S1, S2, EMD SD45-2, GE U33C, U36C and a drone unit and steam generating tender. Locomotive build dates from 1937/1939 to 1972.

This is a scan of an original Santa Fe Locomotive Diagram Book, updated to 1968, 1972 and 1973. 60 pages. 8.5×11.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.
