Southern Pacific Diesel Locomotive Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

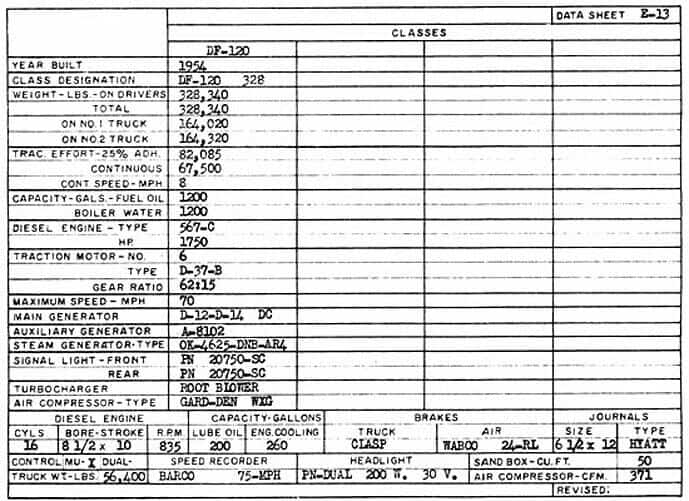

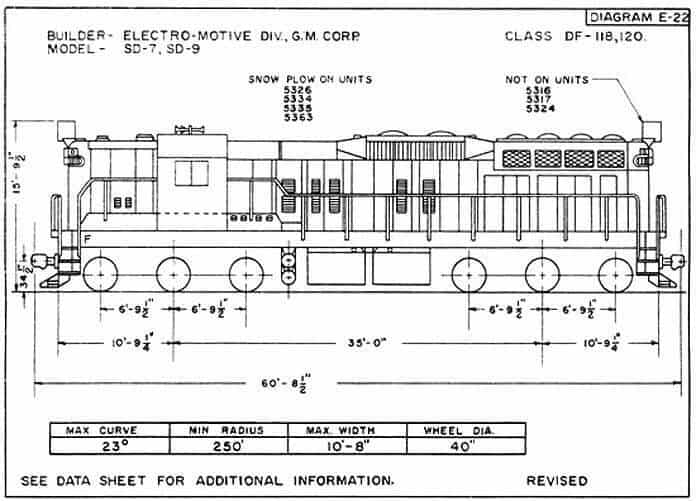

196 pages of diesel diagrams and supporting data sheets. The book is divided into segments by builder: Alco, Baldwin-Lima-Hamilton, EMD, Fairbanks Morse, and GE. Each section has an index. Each diagram has one or more data pages. There is also a master index. There are 72 diagrams the rest of the pages are data pages (for each class and sub class) supporting each diagram and index pages. Cover page has “Diesel Unit Diagrams, Southern Pacific Company, Motive Power Department”.

This is a scan of an original Southern Pacific Diesel Locomotive Diagram Book. Pages are 8.5 by 11 inches. 196 pages.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.

About your lifetime download backup guarantee

► Our data is stored in the most reliable data cloud on the planet, the Amazon Cloud. The same service Netflix uses.
► We are serious about storing and serving data.
► If you lose your disc, change computers, whatever the need, just send us an email.
