Northern Pacific Steam Locomotive Diagrams

Two choices on delivery. Immediate download or PDF file on a CD Data Disc shipped to you.

Why buy digital information from RailfanDepot?
1) 20 years experience. Professional high quality scans.
2) All data discs are 780MB CD discs. No need for a DVD Drive.
3) If shipped, CDs come in a case for protection and storage.
4) The discs are printed, not paper labels that can damage a drive.
5) Shipped discs come with a tracking number.
6) Lifetime download backup guarantee. See below.
———————————————————————————

Even in 1957, the Northern Pacific rostered a large assortment of steam locomotives. This diagram book has diagrams for switchers and main line power along with tenders and auxiliary tenders. It was originally assigned to the Boiler Foreman at Brainerd Shops and was last updated in 1957. The index pages show as crossed out all the diagrams no longer in the book. You can tell this was a much thicker book in the mid-40’s! Locomotive classes included in this diagram book:

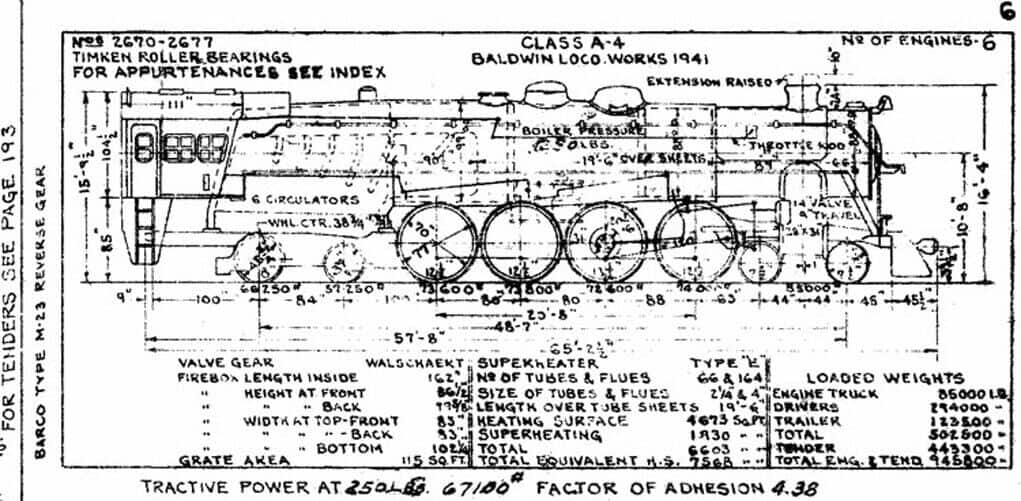

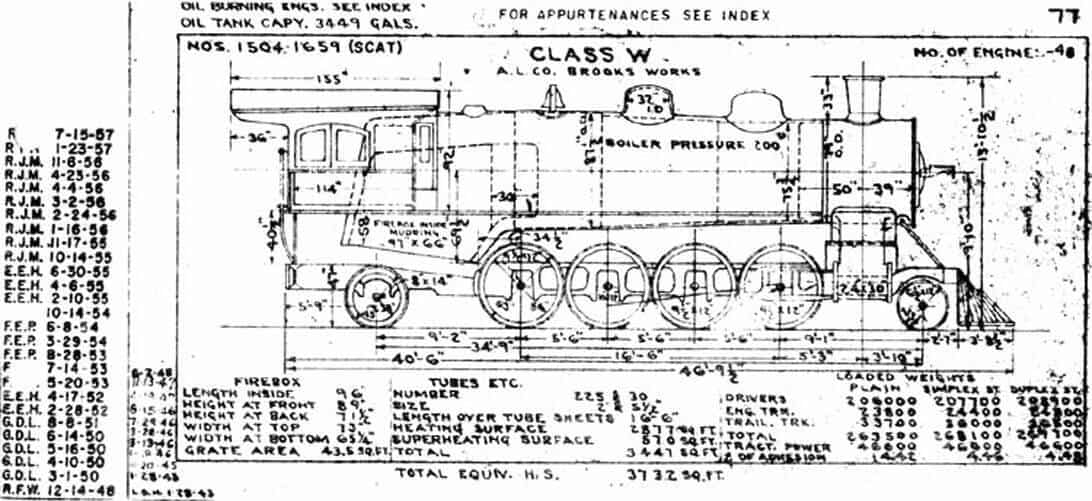

* Class A (4-8-4), * Class A-1 (4-8-4) (This is the famous Timken Four Aces, the first sealed roller bearing locomotive.), * Class A-2 (4-8-4), * Class A-3 (4-8-4), * Class A-4 (4-8-4), * Class A-5 (4-8-4), * Class G-1 (0-8-0), * Class G-2 (0-8-0), * Class L-7 (0-6-0), * Class L-9 (0-6-0), * Class L-10 (0-6-0), * Class Q-3 (4-6-2), * Class Q-4 (4-6-2), * Class Q-5 (4-6-2), * Class Q-6 (4-6-2), * Class S-4 (2-6-0), * Class T (2-6-2), * Class T -1 (2-6-2), * Class W (2-8-2), * Class W-1 (2-8-2), * Class W-2 (2-8-2), * Class W-3 (2-8-2), * Class W-4 (2-8-2), * Class W-5 (2-8-2), * Class Y (2-8-0), * Class Y-1 (2-8-0), * Class Y-2 (2-8-0), * Class Z-3 (2-8-8-2), * Class Z-6 (4-6-6-4), * Class Z-7 (4-6-6-4), * Class Z-8 (4-6-6-4) and * tender classes, 3C, 4C, 7C, 16C, 9C, Y-1, 11C, 12C, 13C, 4E, 5E, 7E, 8E, 9E, 10E, 12E, 13E, 14E, 15E, 17E, 18E, 19E, 20E, 21E, 22E, 28E, 29E, 31E, 30E, 33E, 32E, 35E, 36E, 37E, 48E, 43E, 55E, 1-F, 2-F, 1-G, 2-G, Auxiliary Tenders.

This is a scan of an original Northern Pacific Railway Locomotive Diagram Book. 8.5 x 11 inches. 1957. 105 pages: 89 diagram pages (about 40 are tenders), with 14 index pages and two key/legend pages. The original is made up of blueprints, some of which were quite old. Some of the original pages – and so some of the scan pages – were difficult to read because of the typical, fading, nature of blueprints. All white-line blueprints have been printed in black-line for this scan to make them as easy to read as possible. All diagrams have been included so that this book is as complete a historical picture as can be had for Northern Pacific steam in 1957.

The digital form and delivery of this item is copyright 2010 by RailfanDepot. Users may print pages for their own use but may not distribute a copy or make available on forums or for download.
